EB - Flame Sensor

$2.50

  • Model: EB0200710B
  • Shipping Weight: 3gram
  • 9992 Units in Stock

Add to Cart:



Item specifics

Brand Name:Maker Studio

Product Description

Electronic Brick - Flame Sensor can be used to detect fire source or other light sources of the wavelength in the range of 760nm - 1100 nm. Due to its black epoxy, the sensor is sensitive to infrared radiation. The detection range can be adjusted by the potentiometer.



Features

  • Working Voltage: 3.3V~5V
  • Current: 20mA
  • Range of Spectral Bandwidth: 760 ~ 1100nm
  • Detection range: 20cm (4.8V) ~ 100cm(1V)
  • Response Time: 15us
  • Operating Temperature: -25 ~ +85 degree centigrade
  • With Makerduino Demo Code
  • With Power Light and Signal Ligh
  • Weight: 3g



Applications

  • Firefighting robot
  • Fire Detector

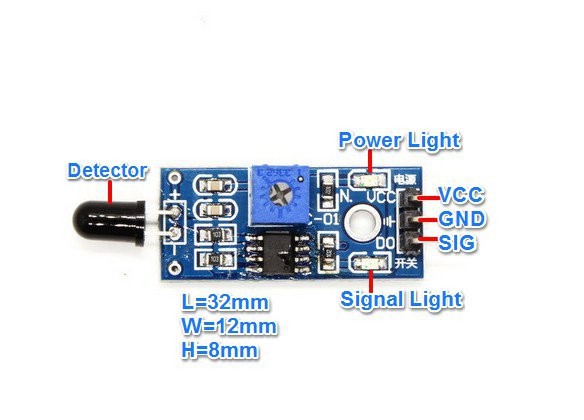

Details

aeProduct.getSubject()



Use with Makerduino

The following steps show how to use EB - Flame Sensor with Makerduino.

Materials

  • Makerduino
  • Electronic Brick Shield
  • EB - Flame Sensor
  • EB - LED
  • A/B type USB cable
  • Female DuPont wires

Steps

1. Connect Electronic Brick Shield onto Makerduino to bring out all the Makerduino Pins.



aeProduct.getSubject()

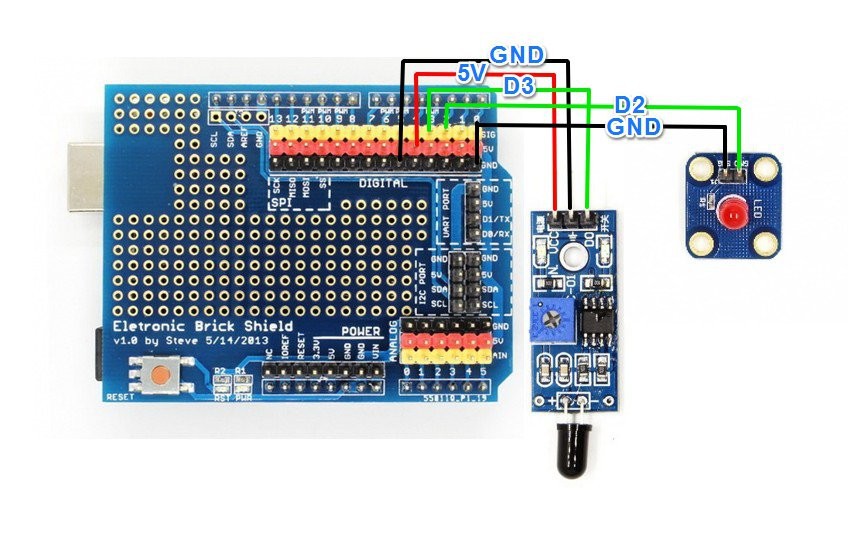

2. Connect EB - Flame Sensor to Makerduino as following.

aeProduct.getSubject()



3. Connect the Makerduino to Computer by the USB cable.



4. Download the Makerduino demo code EB - Flame Sensor.zip. Unzip the code directly into the libraries folder.



5. Open Makerduino IDE, choose the right Board and Serial Port. Open the sketch EB_ FlameSensor.ino and upload it to the Makerduino.

The following is the demo code for EB - Flame Sensor. (Note: It could be a little different from the code file downloaded. Please follow the downloaded file.)

/*

    Function: When the sensor detects the flame, the the LED will be turned on.

    Hardware: EB - Flame Sensor, EB - LED

*/



#define FLAME_SENSOR 3 //connect EB - Flame Sensor to digital pin3

#define LED 2//connect EB - LED to pin2



void setup()

{

    pinsInit();

}

void loop()

{

  if(isFlameDetected())

    turnOnLED();

  else turnOffLED();

}



void pinsInit()

{

    pinMode(FLAME_SENSOR, INPUT);

    pinMode(LED,OUTPUT);

    digitalWrite(LED,LOW);

}

void turnOnLED()

{

    digitalWrite(LED,HIGH);

}

void turnOffLED()

{

    digitalWrite(LED,LOW);

}

boolean isFlameDetected()

{

    if(digitalRead(FLAME_SENSOR))

        return false;

    else return true;

}





6. Check the Results. After the sketch is successfully uploaded, the signal light and the EB - LED are off in normal condition. When put an ignited cigarette round the sensor, the signal light and the EB - LED will turn on.

Download information

https://drive.google.com/?usp=folder&authuser=0&usp=folder#folders/0BzxrU4QvH7jEd3ZJTVdnNUpXNVE

Find EB - Flame Sensor.zip to download schematic and other material.
