EB - Muscle Sensor Kit


  • Model: MSK01
  • Shipping Weight: 55gram
  • 70 Units in Stock

Add to Cart:


By detecting EMG (EMG), measuring muscle activity have traditionally been used in medical research. However with smaller but more powerful microcontroller and the advent of integrated circuits , EMG sensor can be used for various control systems.

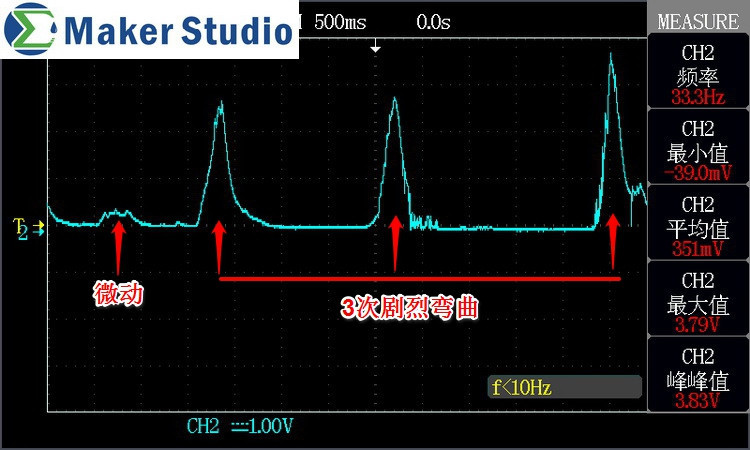

Sensor will measure the the electrical activity of the muscles of the rectifier output 0-Vs volts , the output value is depended on the amount of muscle activity .
It is very easy to use for Arduino controller detects muscle activity


  • EB - Muscle Sensor v1.2 is based on the design of Advancer Technologies.
  • EB - Muscle Sensor v1.2 is released under CC BY-NC-SA 3.0
  • EB - Muscle Sensor v1.2 is granted by Advancer Technologies.

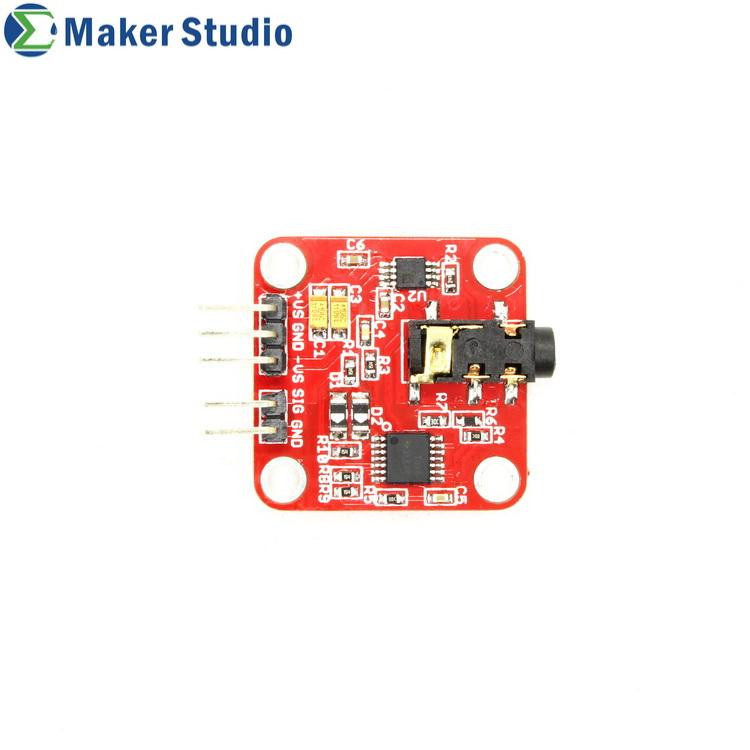

  • Compact with 4 mounting holes
  • Designed for Microcontrollers
  • Fixed Gain, no need to ajust the potentiometer
  • 3.5 mm connector
  • Bread board compatible

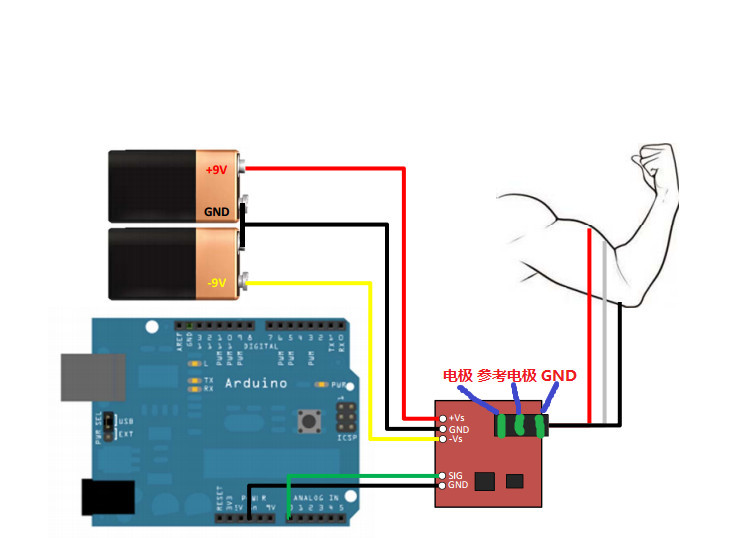

  • Supply Voltage: Dual power supply , the minimum +-3.5V
  • With Arduino Demo Code

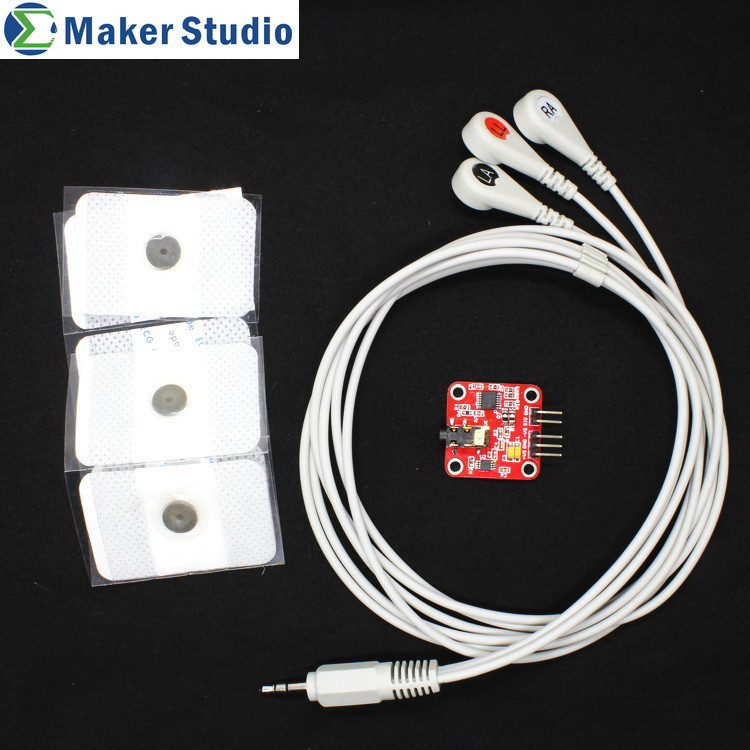

Shipping list

  • 1 x muscle sensor board
  • 1 x Cable Leads
  • 6 x disposable electrodes




User Manual and Demo Code: https://drive.google.com/file/d/0BzxrU4QvH7jEdXc4c0VROFpVMGM/edit?usp=sharing

This product was added to our catalog on Thursday 20 November, 2014.
