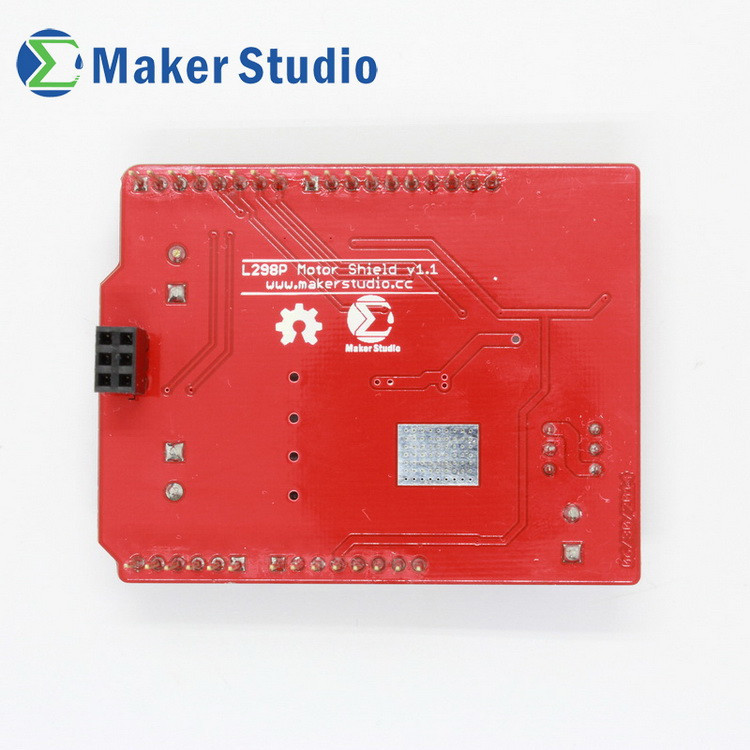

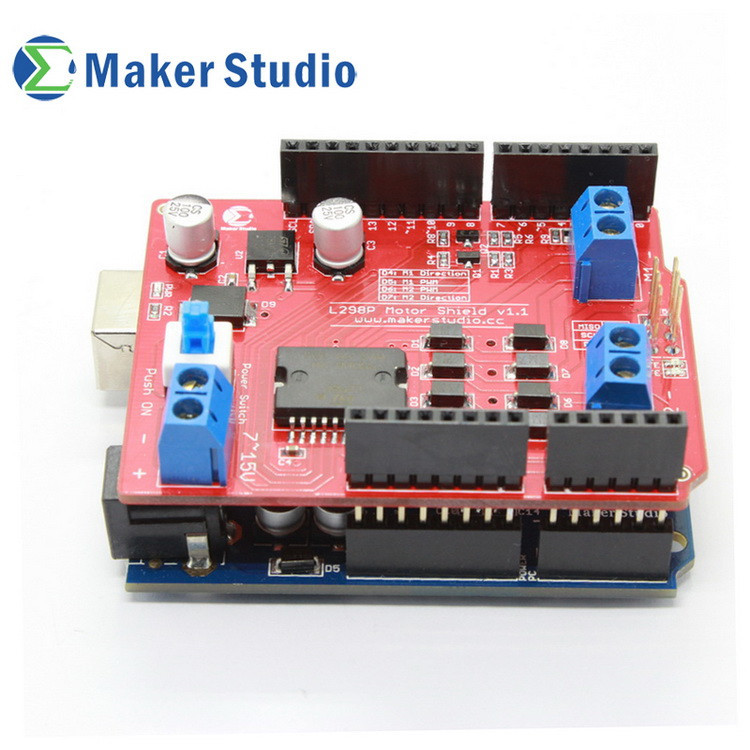

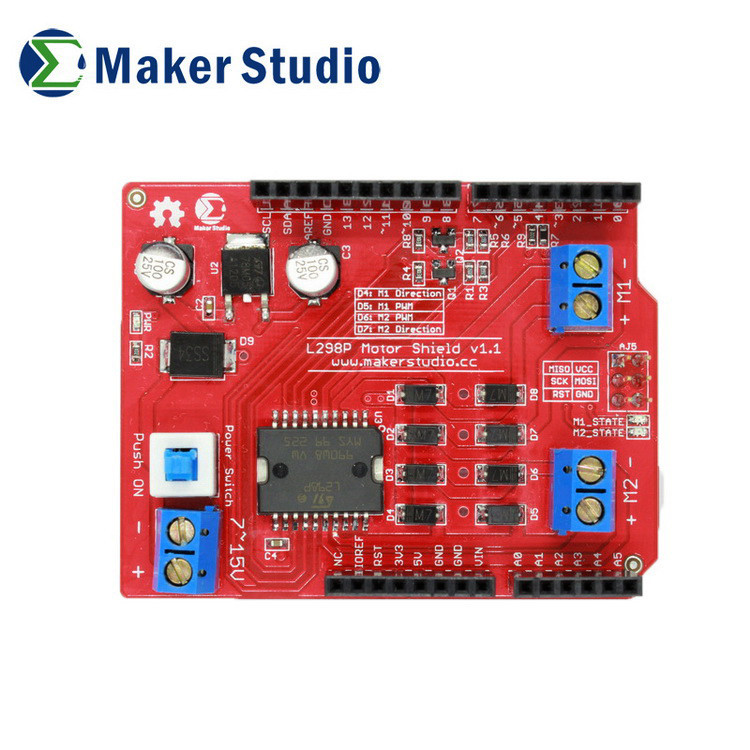

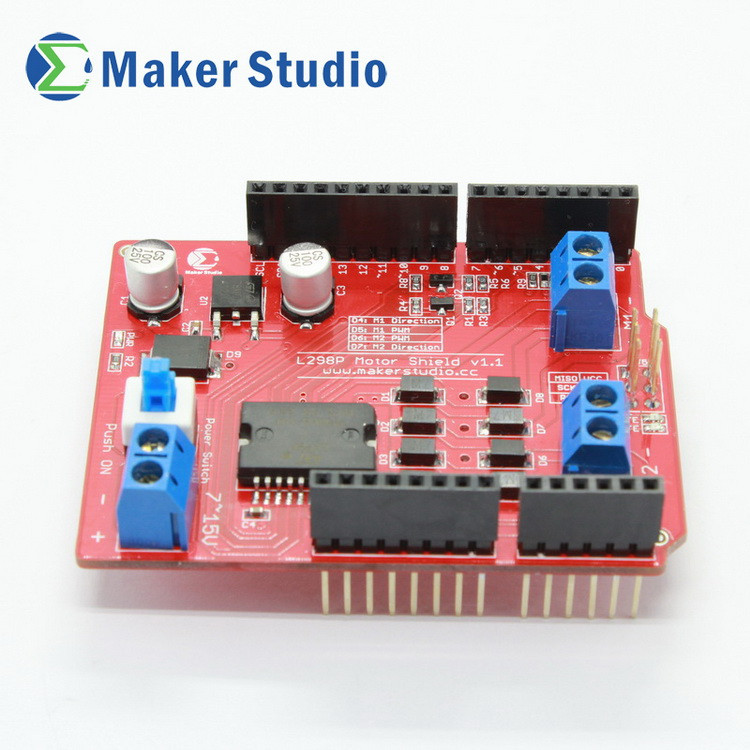

L298P Motor and Stepper Shield for Arduino


  • Model: AS0000311B
  • Shipping Weight: 25gram
  • 0 Units in Stock

Sold Out

The Motor and Stepper Shield is a platform for robotics and mechanical applications based on L298P. It can be used to drive 2 DC motor or a 4-wire stepper. When controlling 2 DC motor, Only 4 control pins were needed, which makes this shield easier to control, and saves the control pins of controller. The Drive current can be up to 2A per motor output because of the heat sink added. you can measure the driver current with the added resistance, which would makes your control system more smart.


  • Minimal control pins needed
  • Measurement for drive current
  • Dual high-power H-bridge driver
  • With demo code for Arduino


  • The logic control voltage: 4.5~5.5V
  • Motor Supply Voltage: 6~15V
  • Max Drive current: 2A
  • Maximum power dissipation: 25W (T = 75 degree Celsius)
  • Operating temperature: -25 degree Celsius ~ +130 degree Celsius
  • Output Duty range: 0%~100%

Shipping List

  • 1 x Motor and Stepper Shiel



This product was added to our catalog on Sunday 13 July, 2014.
