8 SQUARE Heartbeat Necklace Soldering Kit for Arduino UNO R3 Sta

$29.00

  • Model: AK0000810B
  • Shipping Weight: 0.42gram
  • 47 Units in Stock

Add to Cart:



    8 SQUARE Heartbeat Necklace Soldering Kit for Arduino UNO R3 Starter Kit   placa man





Products details:

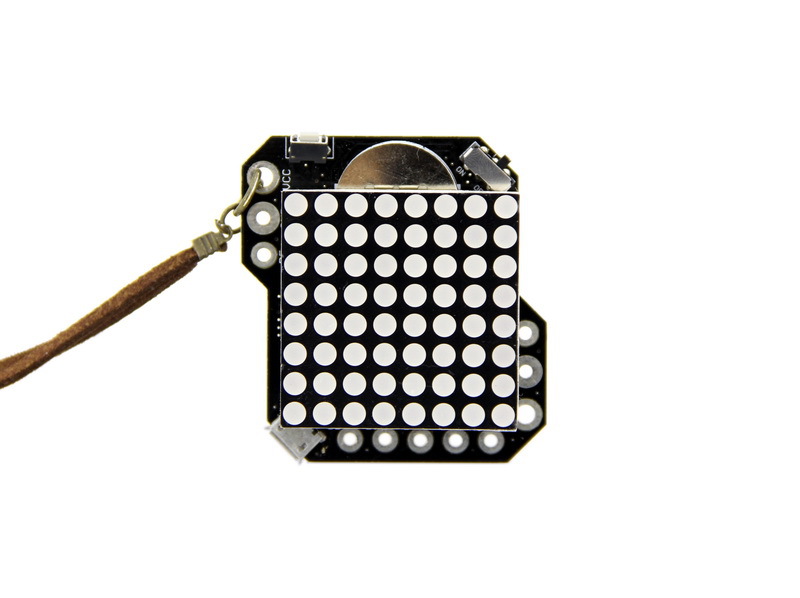

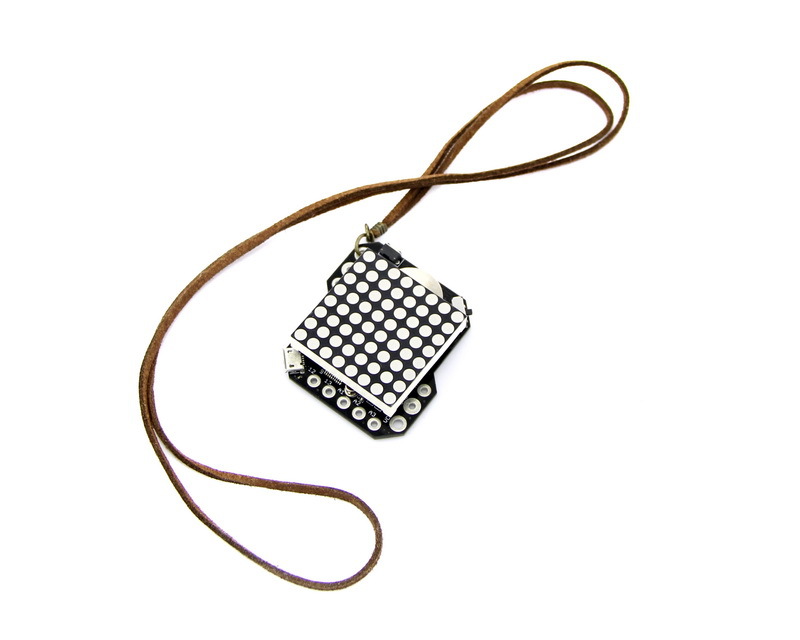

1.   8 SQUARE is a lovely and eye catching necklace that shows off your geek

attitude. We designed it to help you build up your confidence as a hardware maker.

With the soldering iron held in your hand, and detailed tutorial aside, you can make

a red heart bounce on the 8x8  LED matrix.





2. Easy to Solder

8 SQUARE is friendly when it comes to soldering. Components chosen to fulfill the

function are all easiest tosolder and appropriate distance between each two pads

is kept to ensure people without any soldering experience can get it run with only

a little effort.





3. Compatible Microcontroller for Arduino

8 SQUARE features a classic Atmega328 as its processor. You can totally

reprogram it as anUNO - the most widely adapted board for now. Thousands

of tutorials and libraries over the community are easily to found when you need

help to support your next project with 8 SQUARE.





4. Friendly to Sewing

7 signal pins and 4 power pins are routed our as much larger circular pads

along 8 SQUARE. They are designed for further exploration with fabric. The

through hole of these signals are large enough to let you put through any

regular needles and tie a knot to confirm the connection.

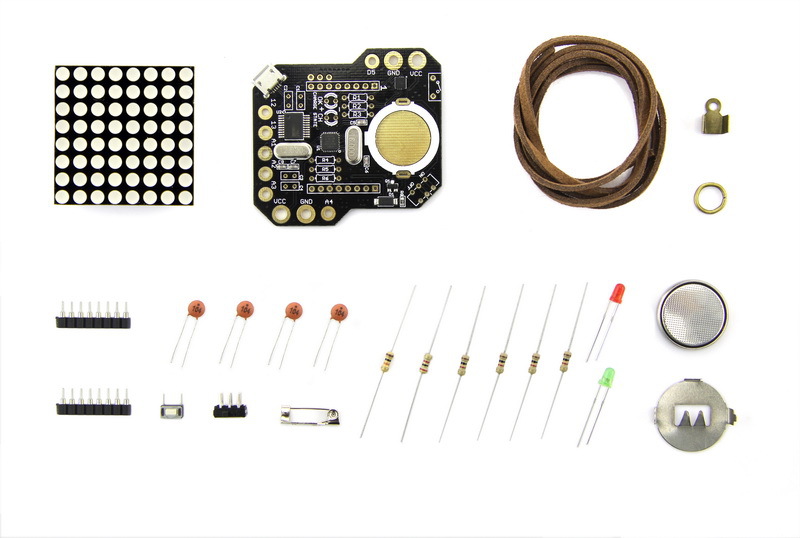

5. Part List    (Code for Arduino: https://github.com/loovee/Square8    )

*Base board x 1

*1k ohm resistor x 4

*2k ohm resistor x 1

*10k ohm resistor x 1

*100nF capacitor x 4

*3mm red LED x 1

*3mm green LED x 1

*Push button x 1

*Switch x 1

*Coin battery holder x 1

*CR2032 coin battery x 1

*8 pin female header x 2

*8x8 LED matrix x 1

*leather rope x 1

*ring x 1

*tutorial x 1







 Pictures shows:





AK0000810B --001.jpg
