4 Channel Relay Shield for Arduino

$6.58

  • Model: AS0000610B
  • Shipping Weight: 250gram
  • 451 Units in Stock

Add to Cart:



The Relay Shield is an compact module with 4 mechanical relays providing an easy way to control high voltage. The max switching power is 35VDC 70W for each channel. It can be directly controlled by Mthrough digital IOs with external 9V DC supply. With 4 manual contrl keys,you can control the high voltage without program.

Features

  • Automatic control and manual control
  • 4 mechanical relays with photo-coupled circuit
  • Equipped with screw holes for easy installation
  • Light weight
  • Small form factor
  • Extendible
  • With demo code for Arduino

Specification

  • Voltage: 7~12V
  • Current: 8~250mA
  • Switching Voltage: Max 35V
  • Switching Current : Max 2A
  • Frequency Response: -1~1dB
  • Switching Power: Max 70W
  • Relay Life: > 100000

Package list

  • 1 x Relay shield

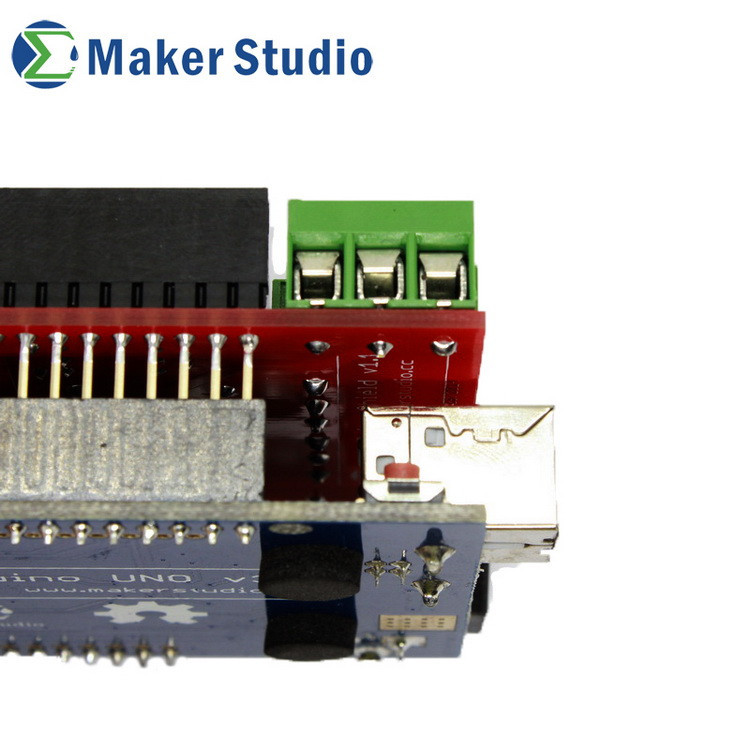

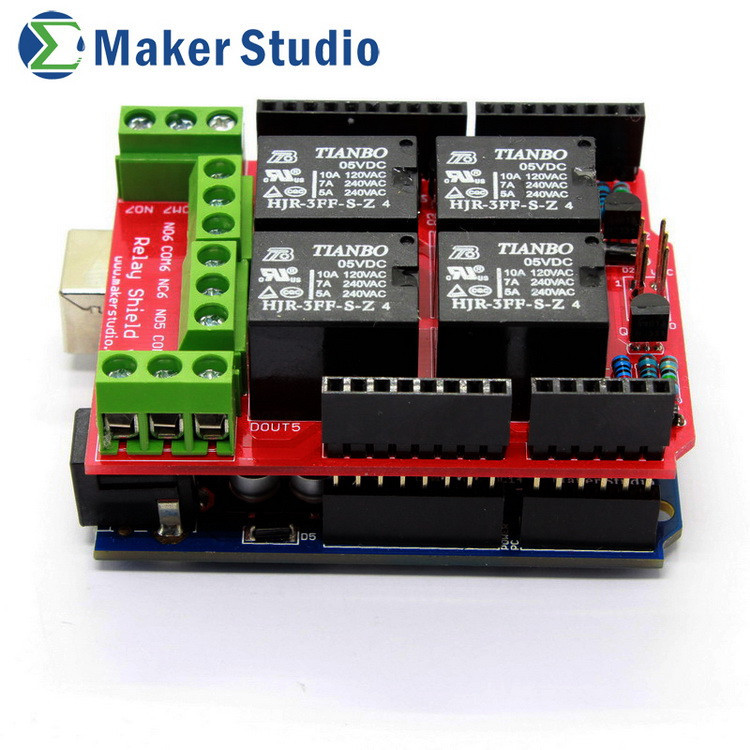

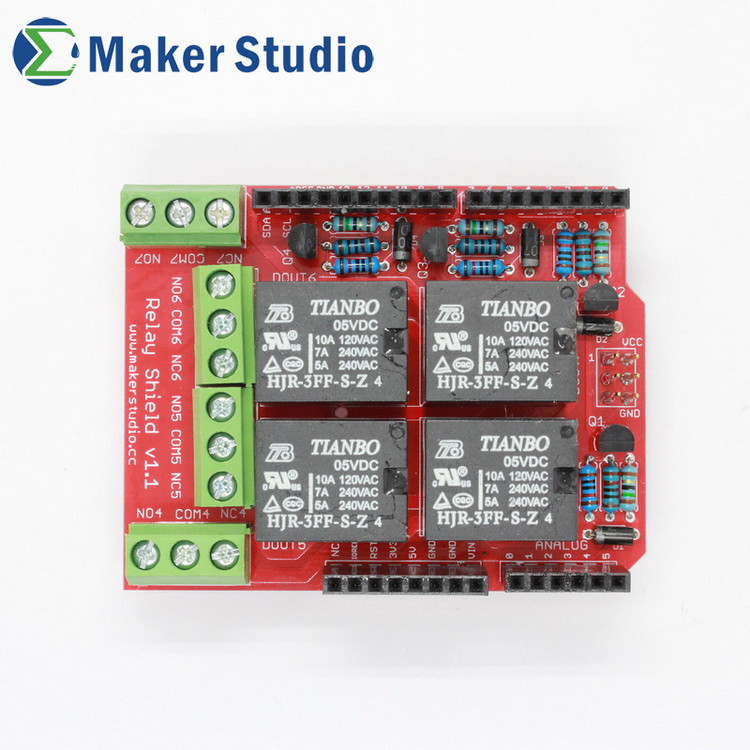

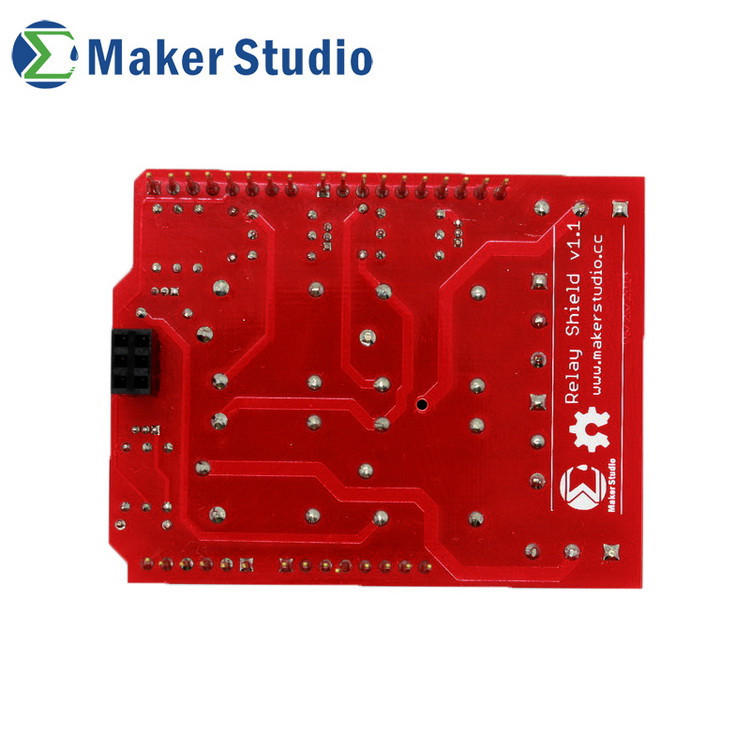

IMG_9804IMG_9805

IMG_9840IMG_9851IMG_9856
