EB - 5mm LED

$1.55

  • Model: EB0400110M
  • Shipping Weight: 3gram
  • 10000 Units in Stock

Add to Cart:



Item specifics

Brand Name:Maker Studio

Product Description

Electronic Brick - 5mm LED (Red Green Blue Orange Selectable)



Features

  • Working Voltage: 3.3V-5V
  • Different LED color for choice
  • With Makerduino Demo Code
  • Compact size
  • Weight: 5g



Applications

  • Decoration



Details

          aeProduct.getSubject()

Use with Makerduino

The following steps show how to use EB - LED with Makerduino.

Materials

  • Makerduino
  • Electronic Brick Shield
  • EB - LED
  • A/B type USB cable
  • Female DuPont wires

Steps

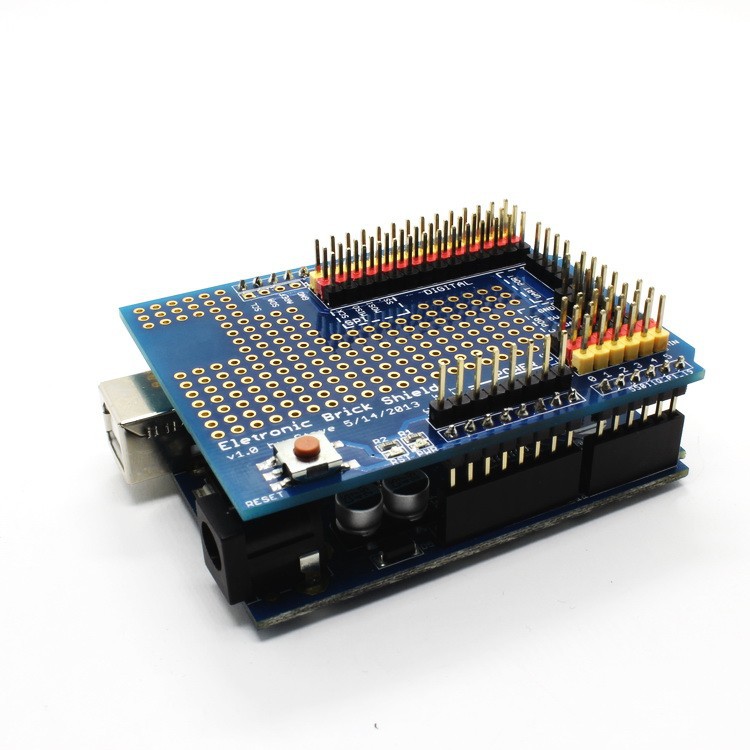

1. Connect Electronic Brick Shield onto Makerduino to bring out all the Makerduino Pins.

aeProduct.getSubject()



2. Connect EB - LED to Makerduino as following.



aeProduct.getSubject()



3. Connect the Makerduino to Computer by the USB cable.



4. Download the Makerduino demo code EB - LED.zip. Unzip the code directly into the libraries folder.



5. Open Makerduino IDE, choose the right Board and Serial Port. Open the sketch EB_LED.ino and upload it to the Makerduino.



The following is the demo code for EB - LED. (Note: It could be a little different from the code file downloaded. Please follow the downloaded file.)

/*
  EB - Blink LED demo code

  Turns on an LED for one second, then off for one second, repeatedly.


 */
// connect led to arduino pin 9
const int led = 9;

// the setup routine runs once when you press reset:
void setup() {
  // initialize the digital pin as an output.
  pinMode(led, OUTPUT);
}
// the loop routine runs over and over again forever:
void loop() {
  digitalWrite(led, HIGH);   // turn the LED on (HIGH is the voltage level)
  delay(1000);               // wait for a second
  digitalWrite(led, LOW);    // turn the LED off by making the voltage LOW
  delay(1000);               // wait for a second
}



6. Check the Results. After the sketch is successfully uploaded, EB - LED blinks per second.

Download information

https://drive.google.com/?usp=folder&authuser=0&usp=folder#folders/0BzxrU4QvH7jEd3ZJTVdnNUpXNVE

Find EB - LED Material.zip to download schematic and other material.
