EB - Fingerprint Sensor

$46.60

  • Model: EB0202110B
  • Shipping Weight: 5gram
  • 10000 Units in Stock

Add to Cart:



Item specifics

Brand Name:Maker Studio

Product Description

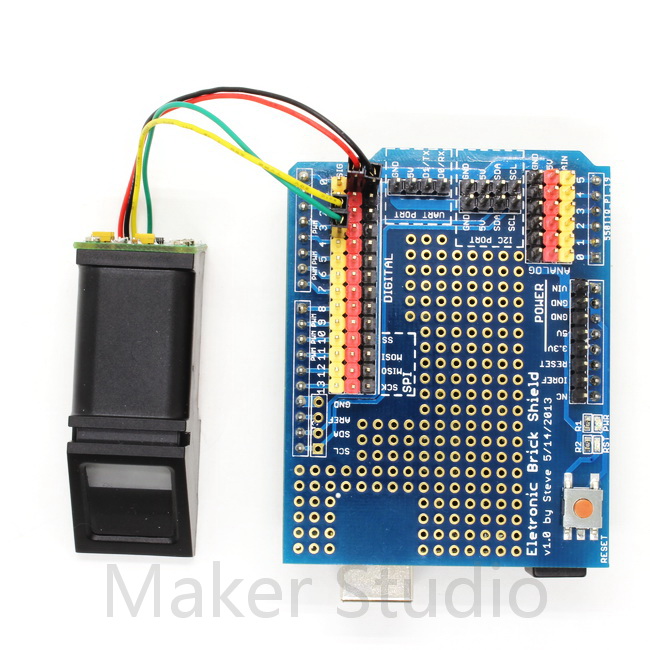

The Fingerprint Sensor is designed for DIY your own security system. It uses Serial interface, which could work directly with Microcontroller.

Features

  • Easy to Use (Serial Interface with Dupont connector)
  • With Demo code for Arduino (We will send to your email)
  • Built-in storage memory

Specifications

  • Working Voltage: 3.6~6.0VDC
  • Typical Current: 100mA (150mA Max)
  • Interface: Uart (TTL)

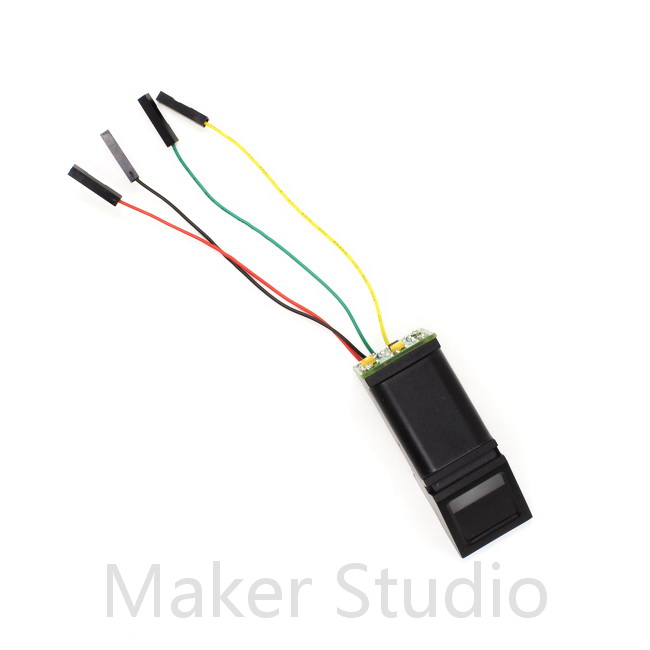

  • Connections: Red- VCC, Black - GND, Yellow- RX, Green - TX)
  • Baudrate: (9600 x N)bps, N = 1 ~12
  • Default Baudrate: 57600bps
  • Fingerprint Sample Time: < 0.5S
  • Sample Area: 14 x 18mm
  • Fingerprint Number: 1000
  • 5 Security Levels
  • FAR (False Acceptance Rate): <0.001% (at Level 3)
  • FRR (False Rejection Rate): <0.1% (at level 3)
  • Average Matching Time: 1S
  • Working Environment: -20 ~ +85 Centidegree, 40%RH ~ 85%RH Humidity
  • Storage Environment: -40 ~ +85 Centidegree, < 85%RH Humidity
  • Size: 56 x 20 x 21.5mm
